MIL-S-62549(AT)



NOTE:

DIMENSIONS SHOWN THUS: MILLIMETERS (FEET-INCHES)

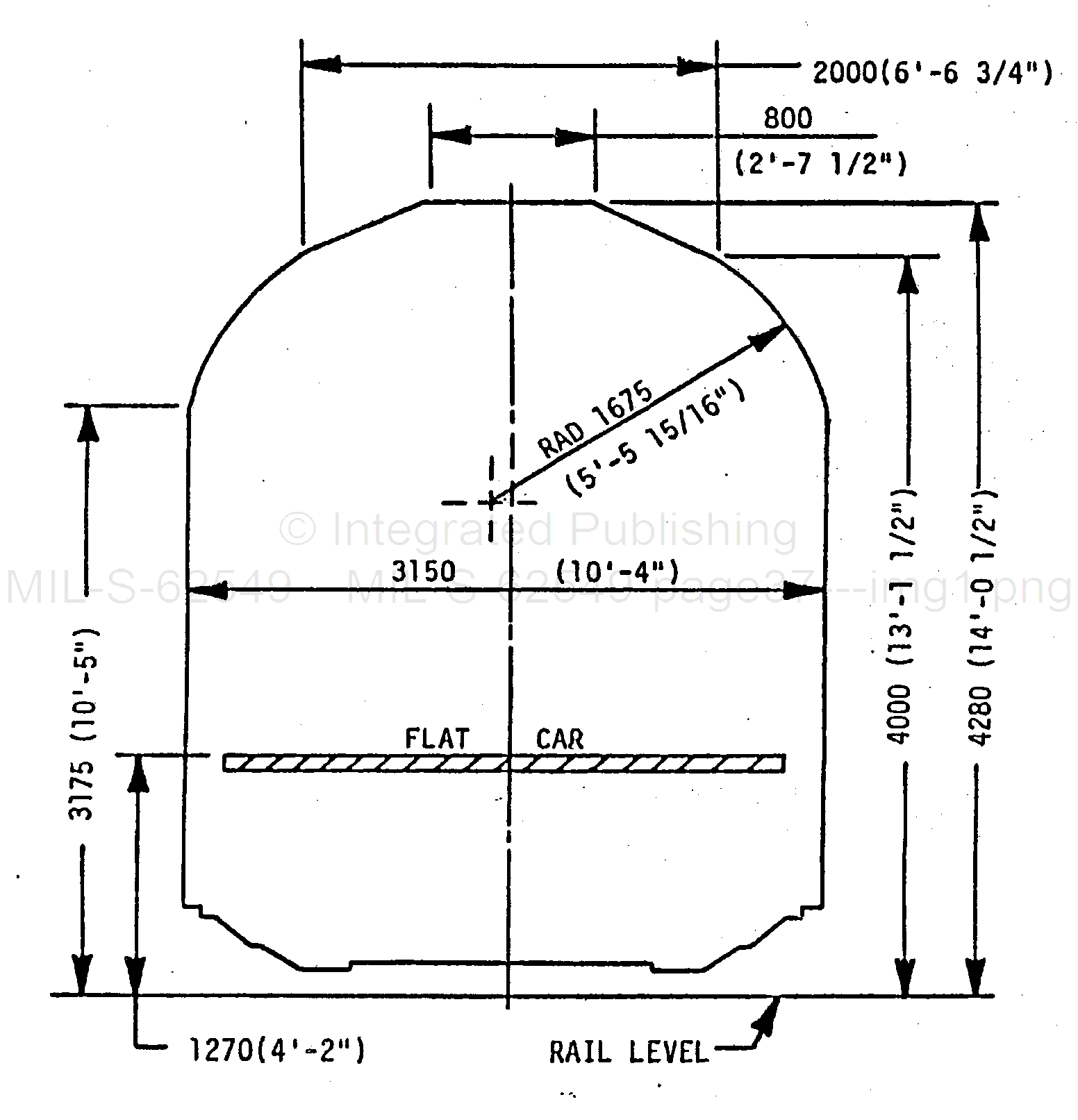

FIGURE 1.  Passe-Partout International (PPI) guage.


37
