MIL-S-46777 Semitrailers, Dump, Commercial, General Specification ForThis specification covers various sizes of rear dump semitrailers. The dump semitrailers are operated by the truck-tractors hydraulic system, unless the self-contained engine driven hydraulic option is required.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26 - 27 - 28 - 29 - 30 - 31 - 32 - 33 - 34 - 35 - 36 - 37 - 38 - 39 - 40 - 41 - 42 - 43 - 44 - 45 - 46 - 47 - 48 - 49


MIL-S-46777C



CHOCK MATERIAL NOTE                         CAPTIVE FASTENER ASSEMBLY DETAILS

1.

ALUMINIUM

1.

SNAP HOOK FOR CRADLE OR EYE.

2.

MAGNESIUM

2.

FASTENER LINE TENSILE STRENGTH

3.

SEMI-RIGID ELASTOMER

MINIMUM OF 1,400 LB.

4.

MAXIMUM CHOCK WEIGHT

3.

PLATE FERROUS COMPONENTS TO

11.5 LB.


4.

RESIST CORROSION.

LENGTH OF CAPTIVE FASTENER

ASSEMBLY SHALL REACH BETWEEN

CRADLE OR HANGER AND EMPLACED

CHOCK BLOCK AT EXTREME

LOCATIONS AHEAD OF AND BEHIND

ROAD WHEELS.

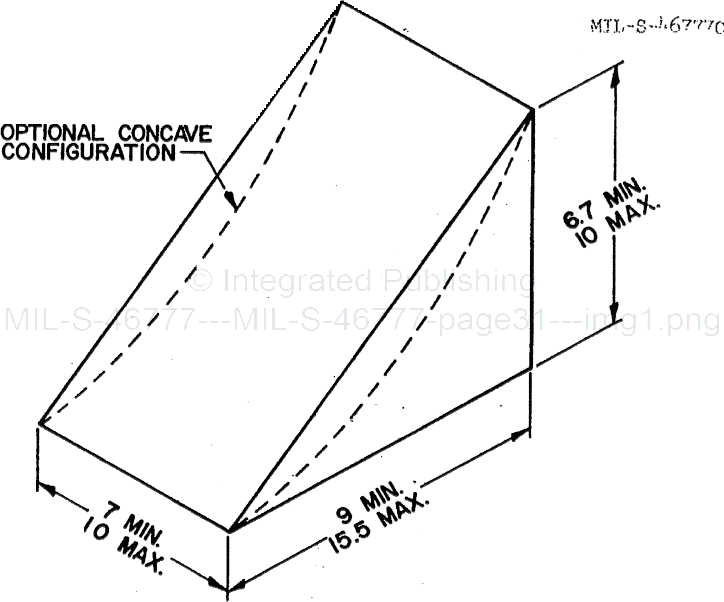

FIGURE 3.  Chock block assembly.


X 630 A


31
